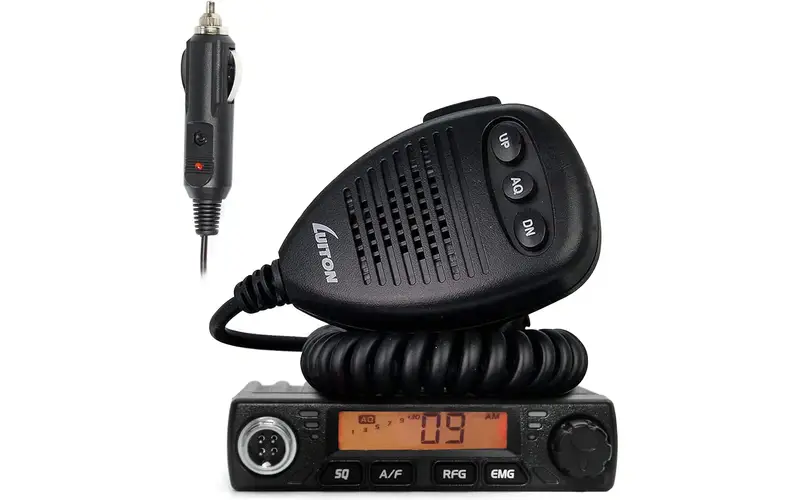

COMPACT INSTALLATION
A Full Mobile Radio in a 25 mm-High Body

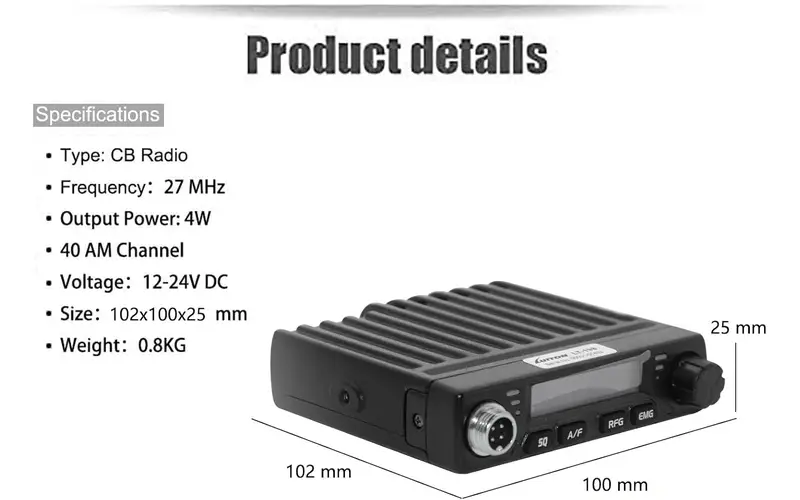

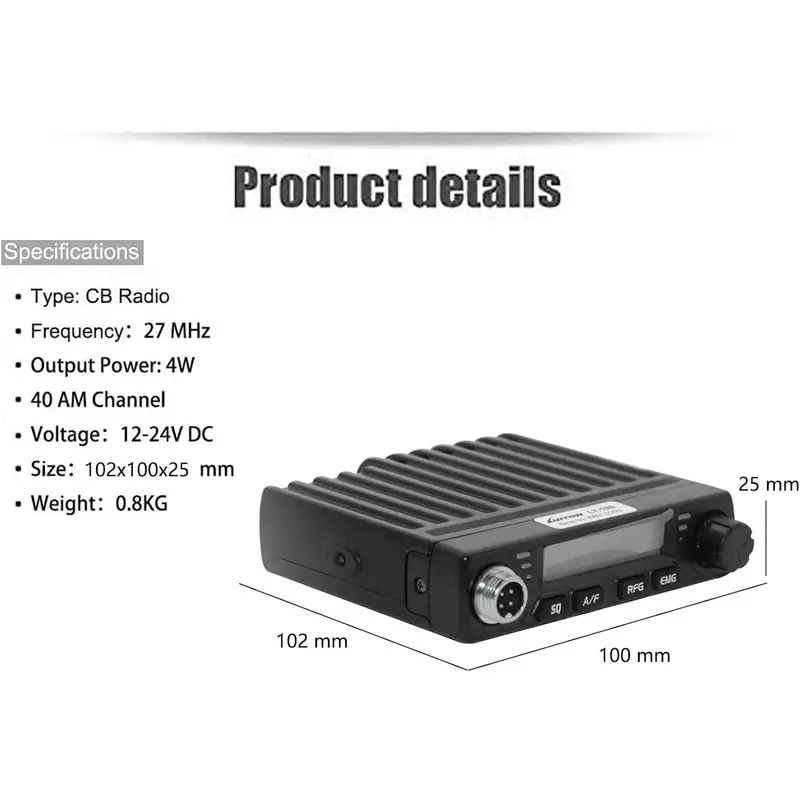

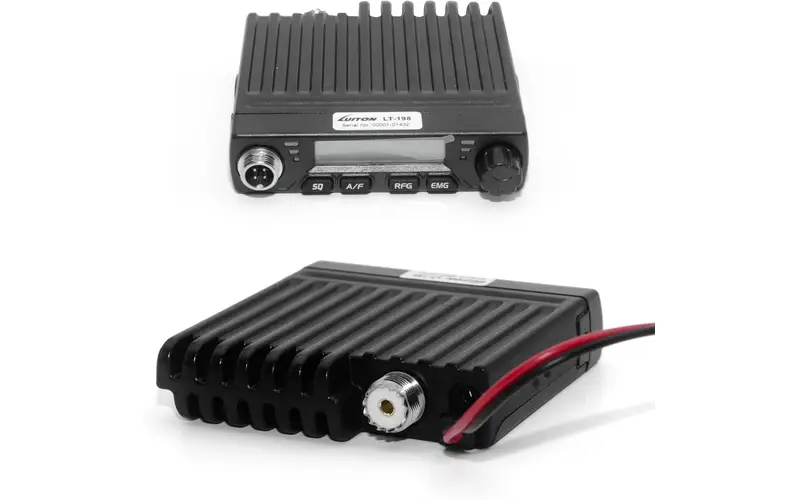

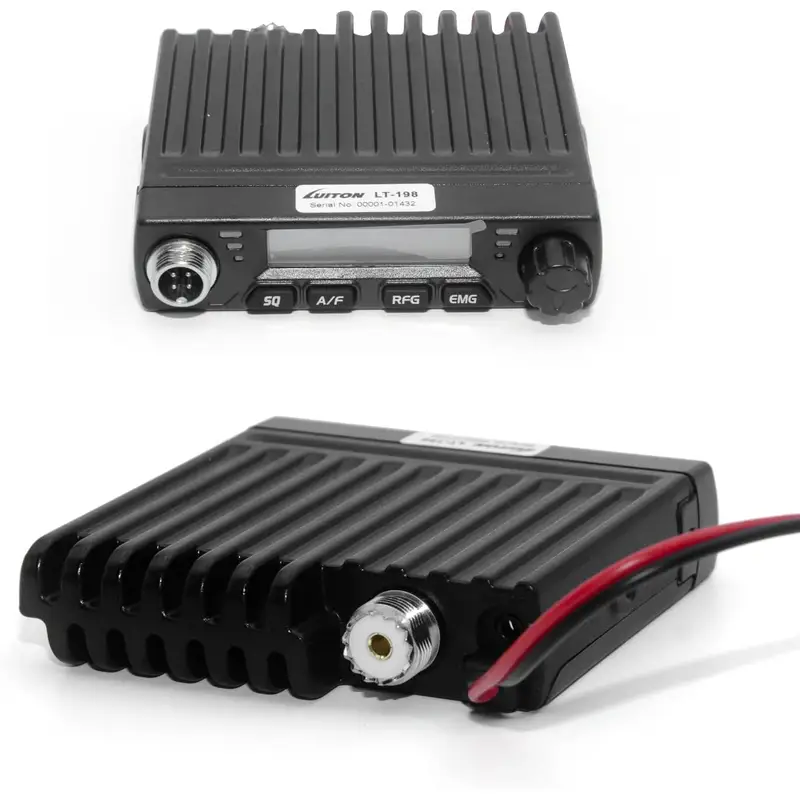

Measuring 102 × 100 × 25 mm, the LT-198 is designed for dashboards, consoles, and other vehicle locations where installation space is limited.
MULTI-STANDARD OPERATION
Configure AM or FM for Local CB Use
The radio supports selectable CB standards and AM/FM communication. Users must select a channel plan, mode, and operating profile permitted by the rules of their country.

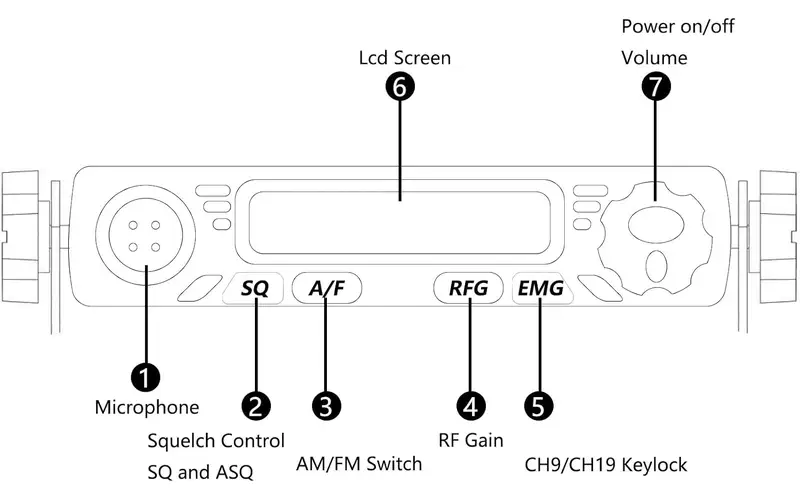

VISIBLE CONTROLS
Review Channels and Settings at a Glance

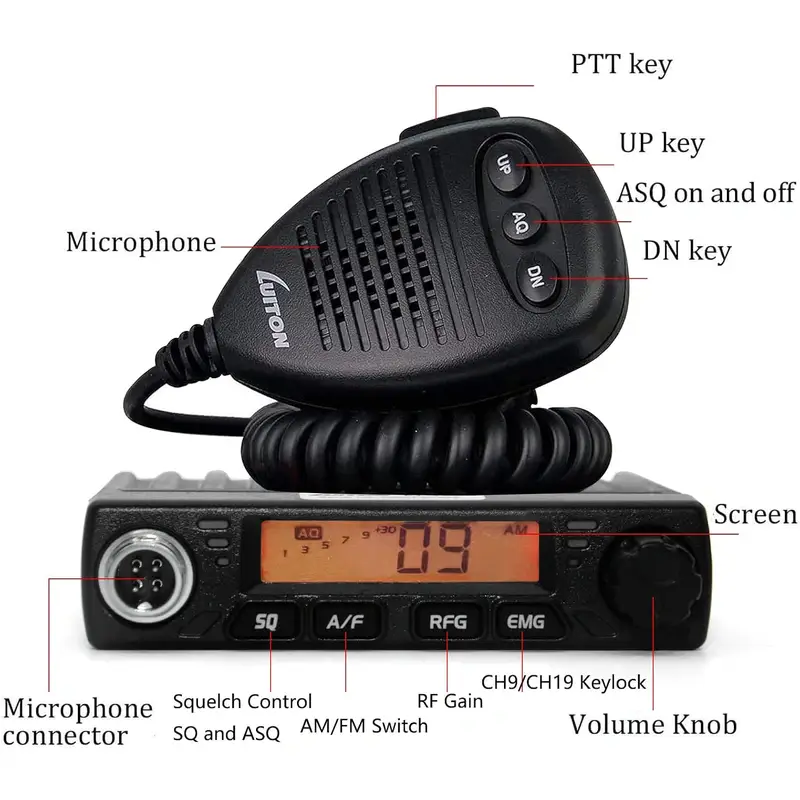

An orange-backlit LCD displays the current channel, volume, S-meter, and operating information. Channel Up and Down buttons on the microphone keep routine changes within reach.
SIGNAL MANAGEMENT
Adjust Reception for Current Conditions
Automatic squelch, manual squelch adjustment, and RF gain help manage weak signals and background noise. Channel scan searches the configured channels, while VOX supports voice-operated transmission.

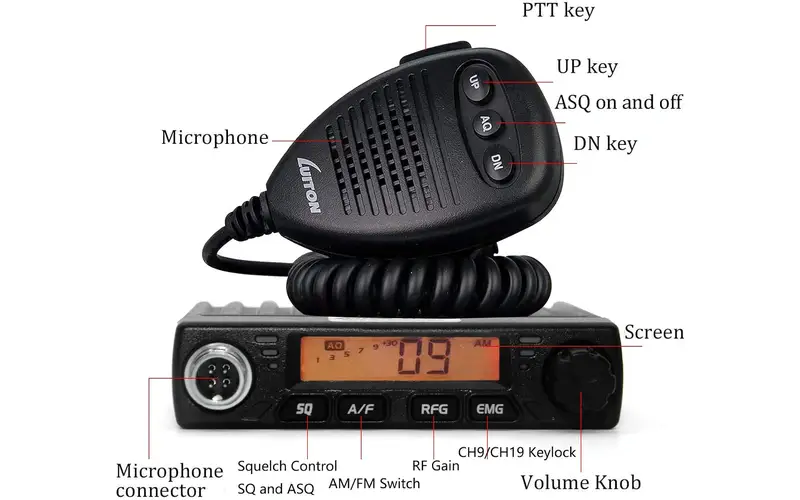

FLEXIBLE SETUP
Use in a Vehicle or Fixed Location
The 12-24V DC input supports compatible vehicle electrical systems. The radio can also operate as a base station with a suitable regulated DC supply and antenna system, both sold separately.
Frequently Asked Questions
What power source does the LT-198 require?
The radio accepts a compatible 12-24V DC power source. A vehicle power cord is included.
Does AM/FM refer to broadcast radio reception?
No. AM and FM refer to CB communication modes. Operators communicating on the same channel must also use a compatible mode.
Which selectable CB standard should I use?
Select only the operating profile, channel plan, and mode authorized in the country where the radio is being used. Regional requirements can differ.
Is a CB antenna included?
No antenna or coax cable is listed as included. Operation requires a compatible CB antenna system that is correctly installed and tuned.
Can an external speaker be connected?
Yes. The LT-198 has a socket for an optional compatible external speaker. The external speaker is not included.
What comes with the LT-198?

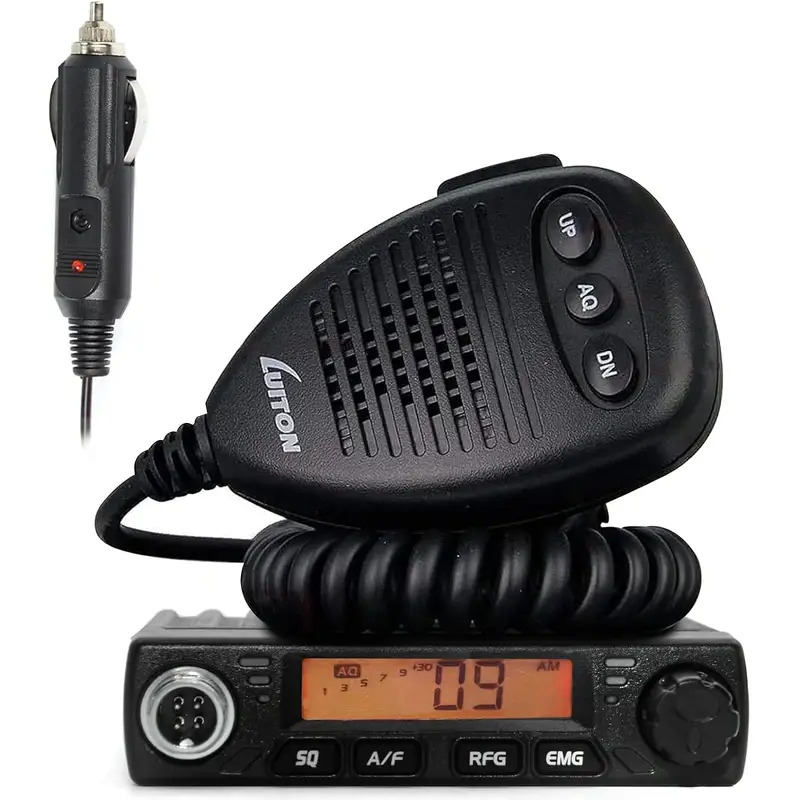

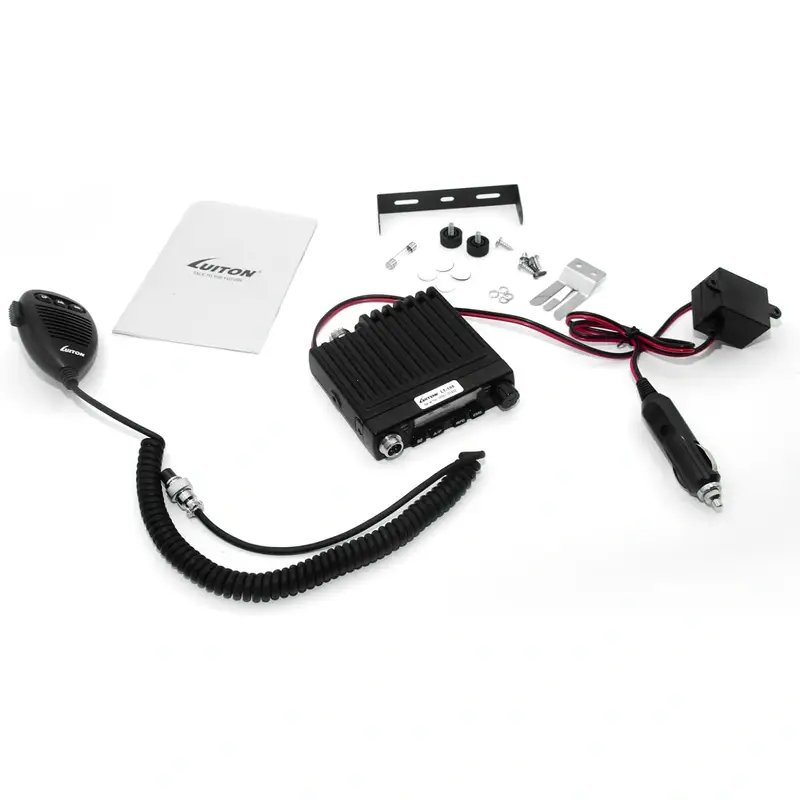

The package includes one LT-198 radio with microphone, one mounting bracket, two bracket screws, one vehicle power cord, four toothed washers, and four mounting screws.
